Description:

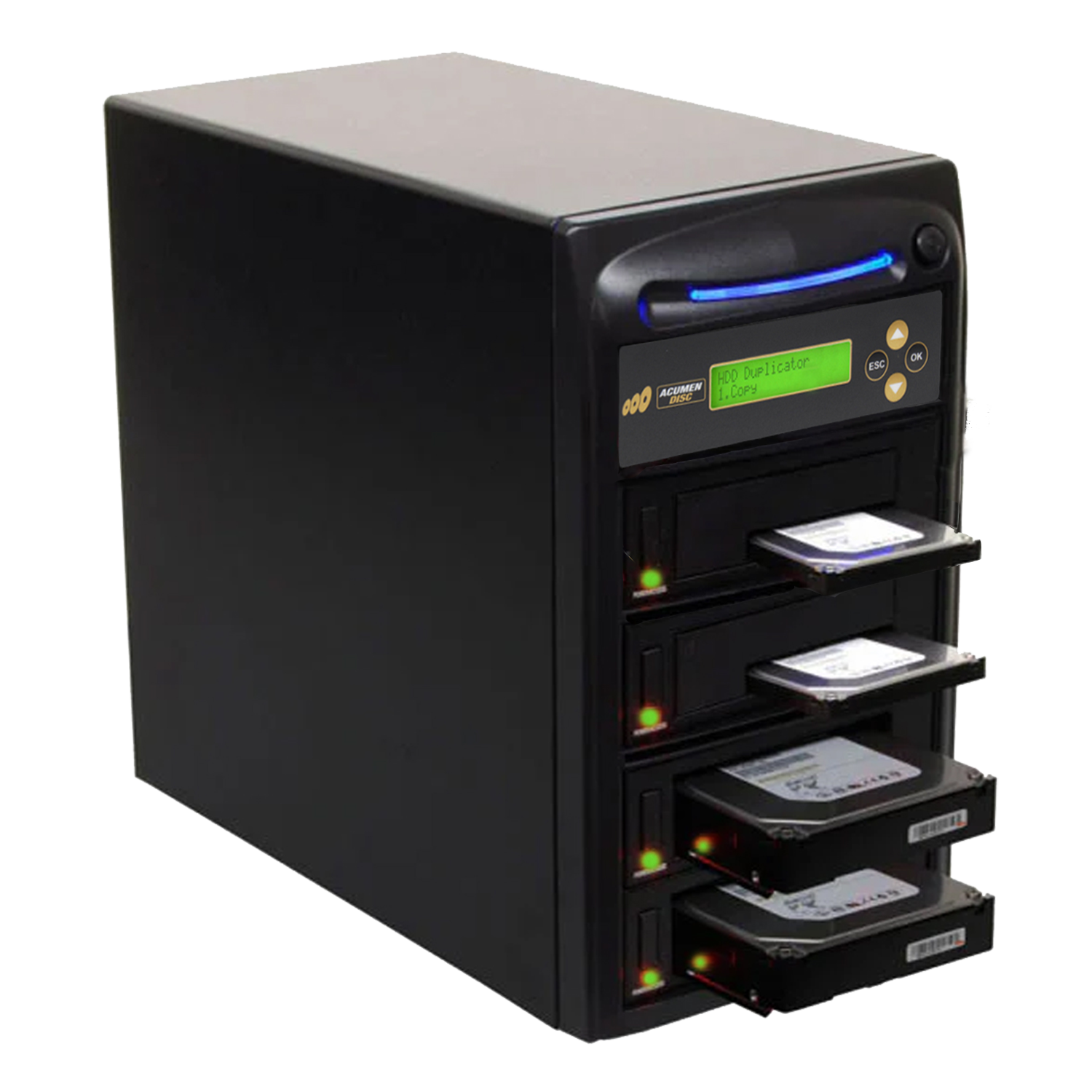

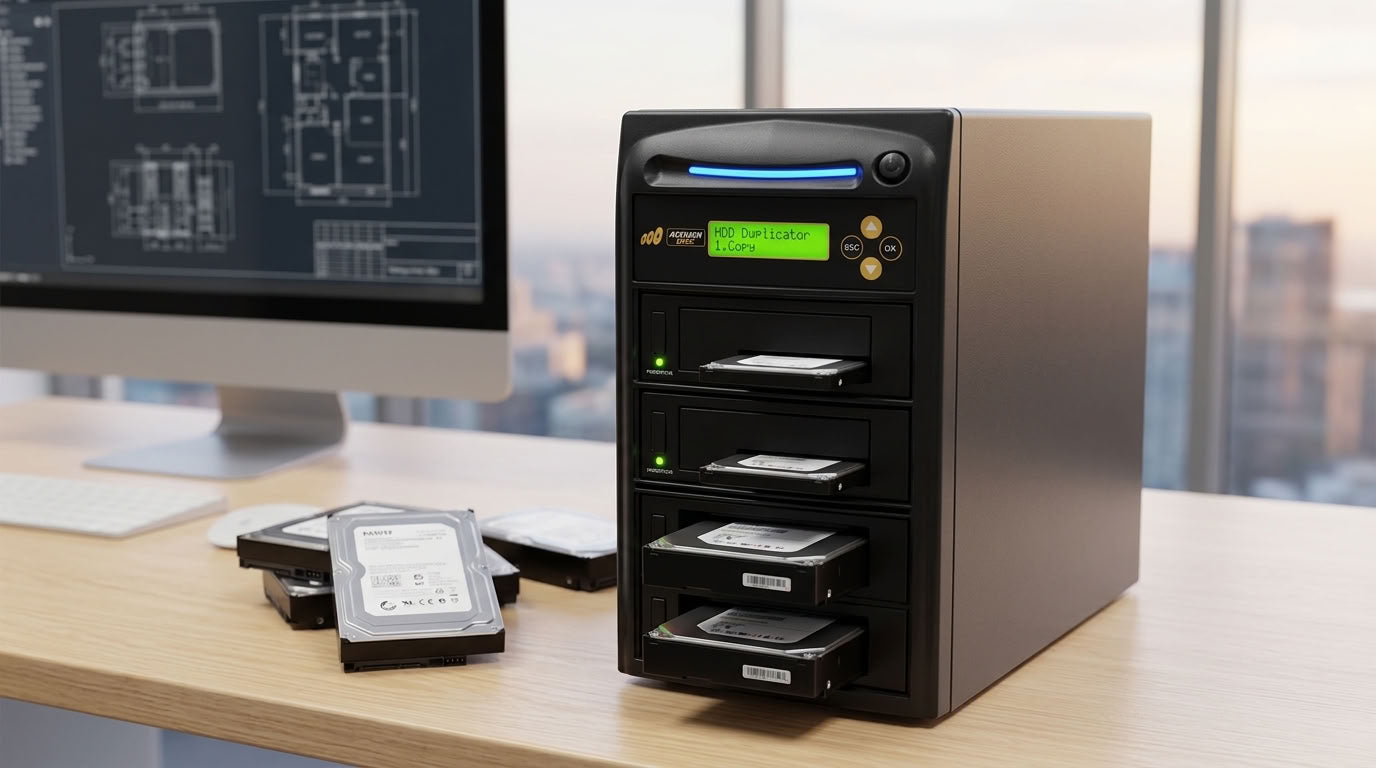

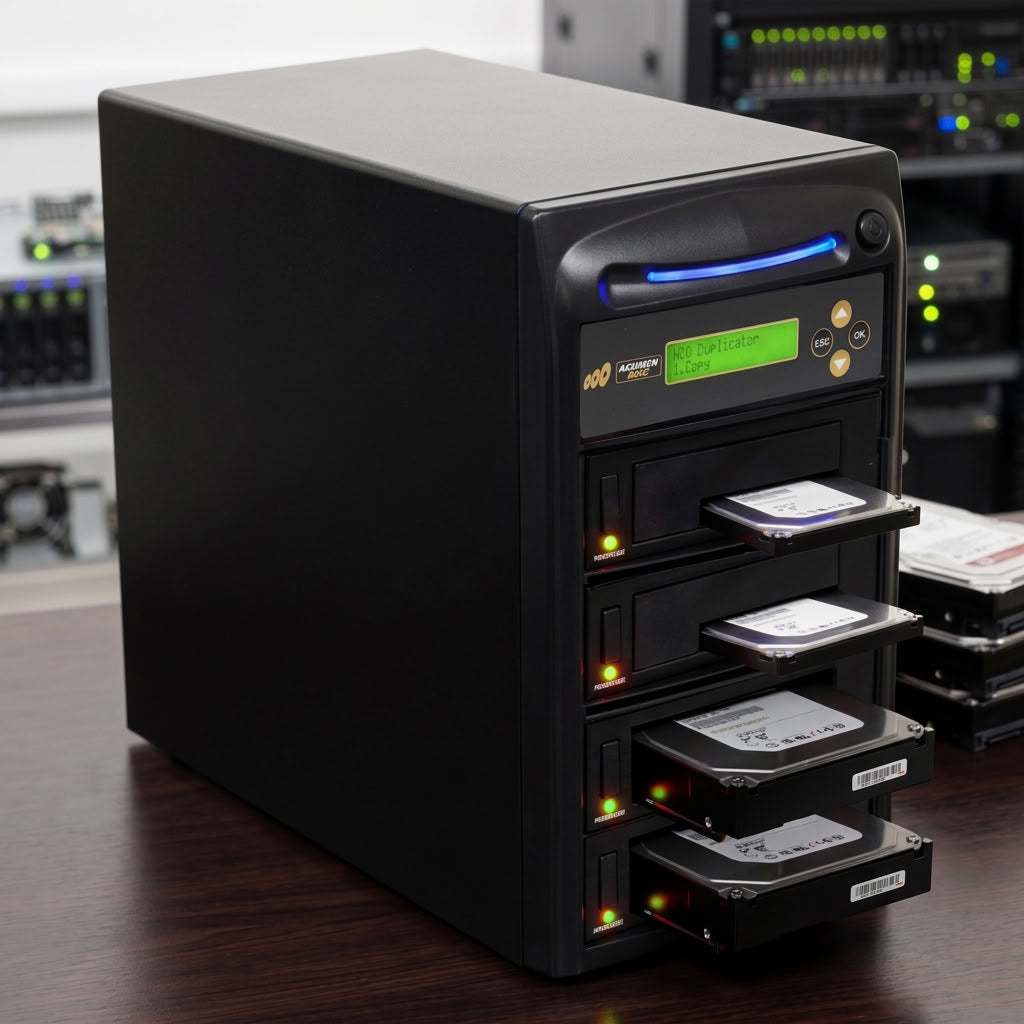

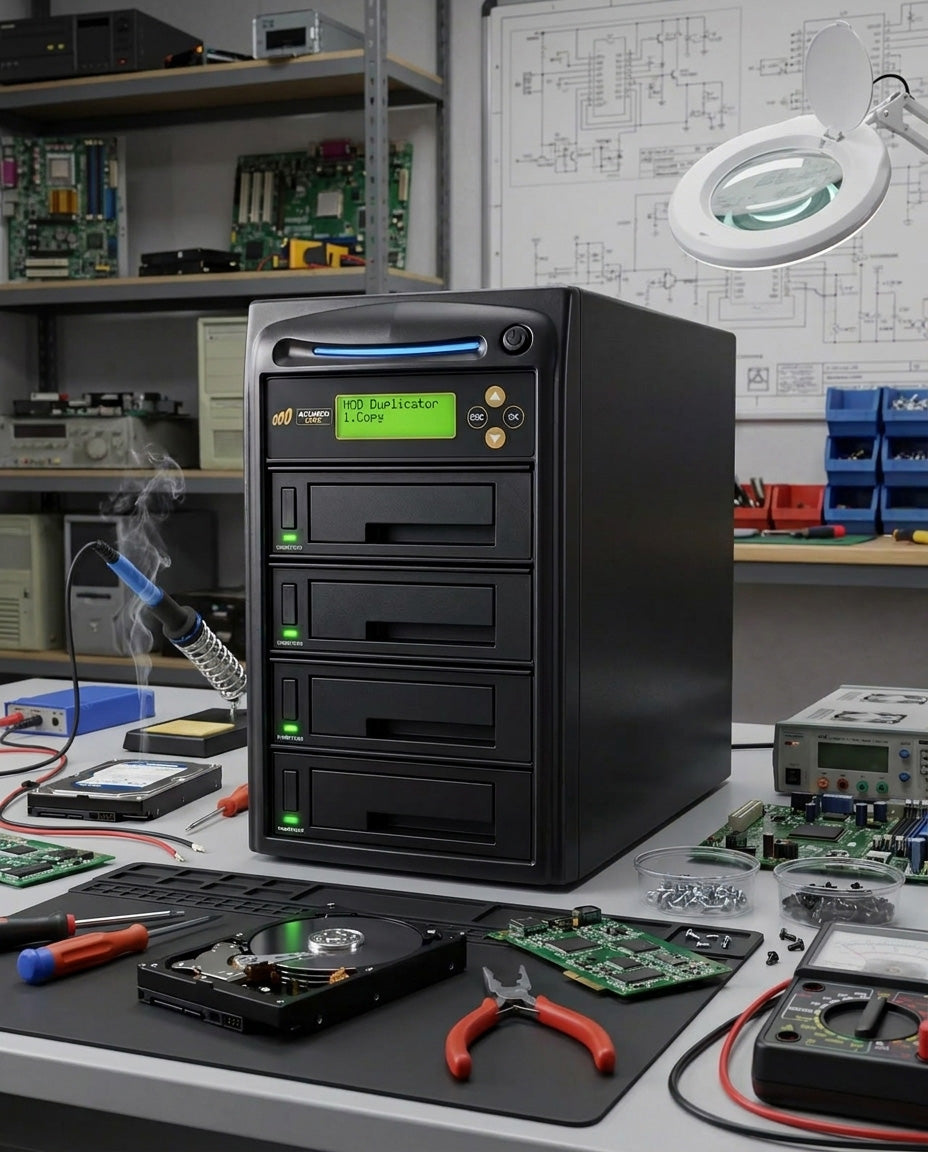

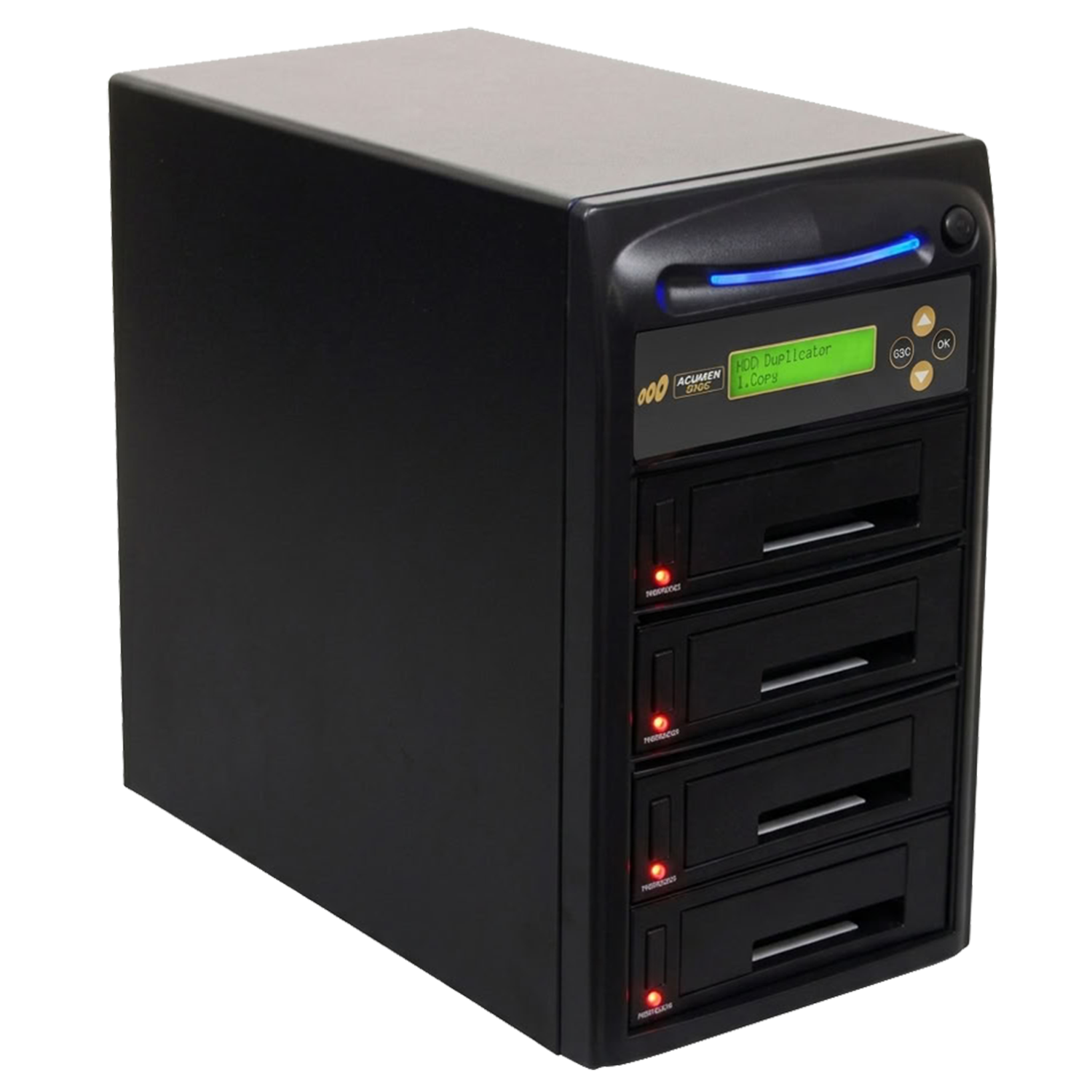

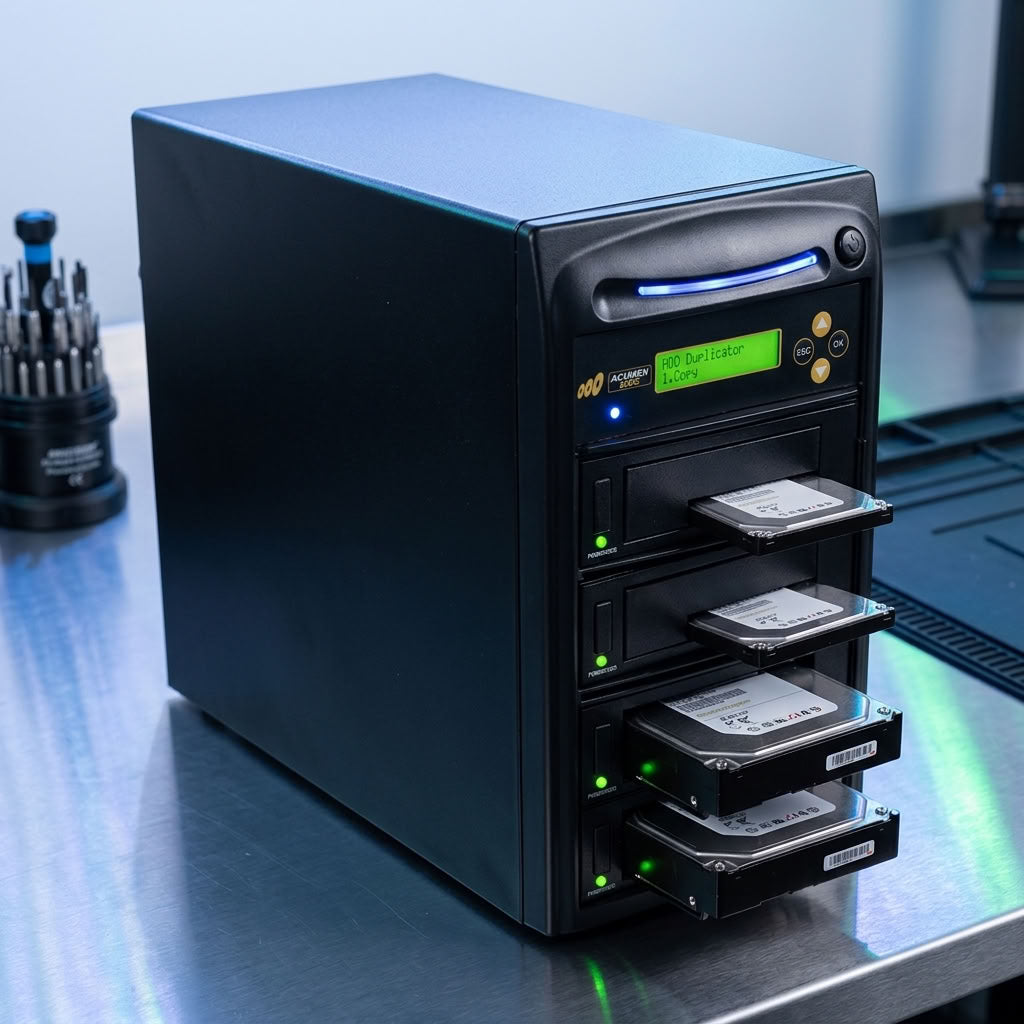

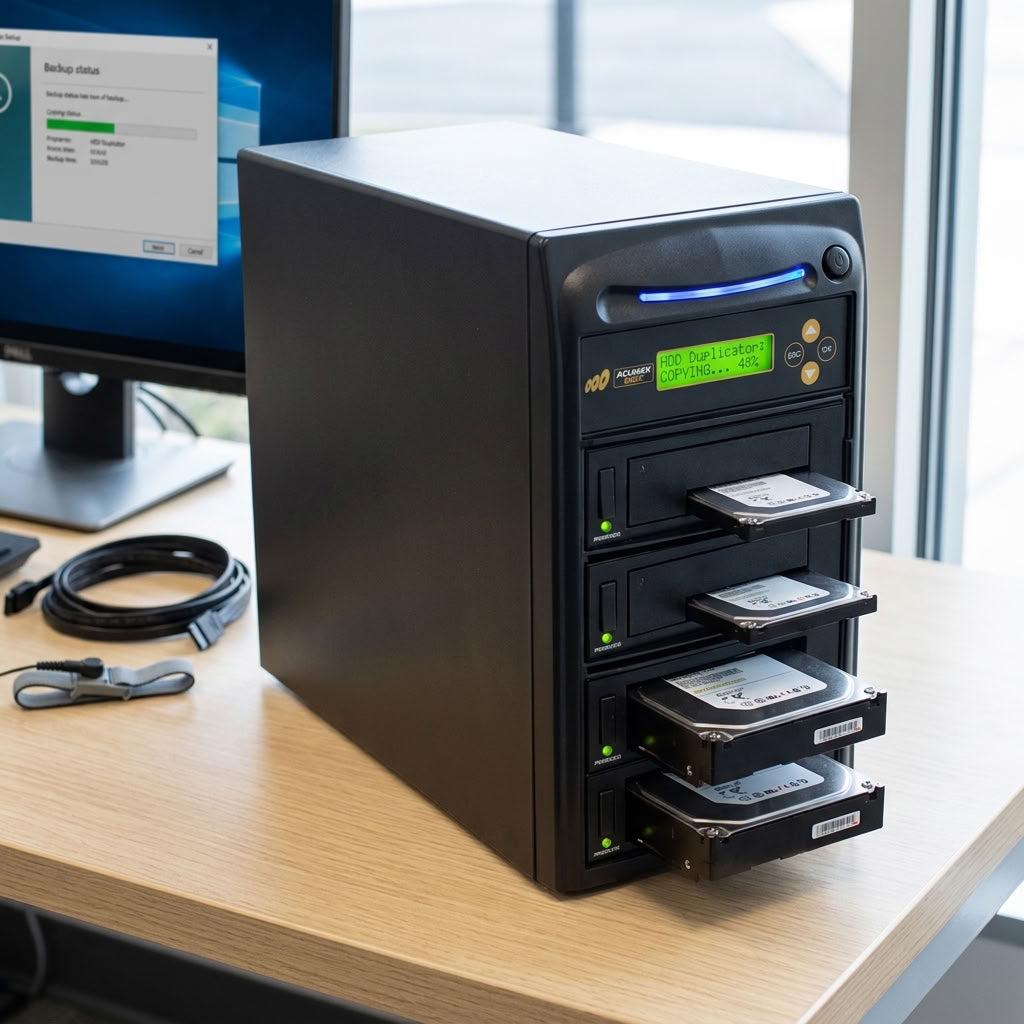

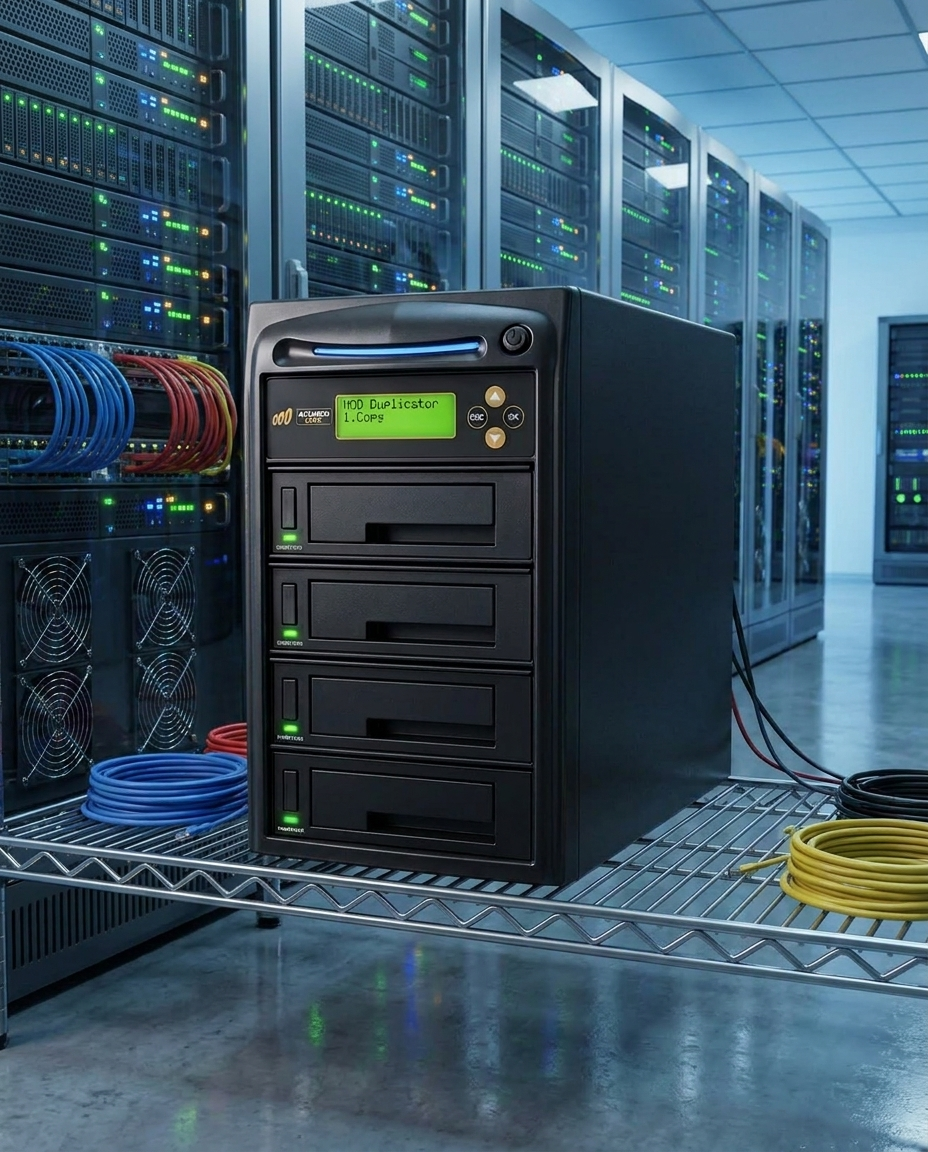

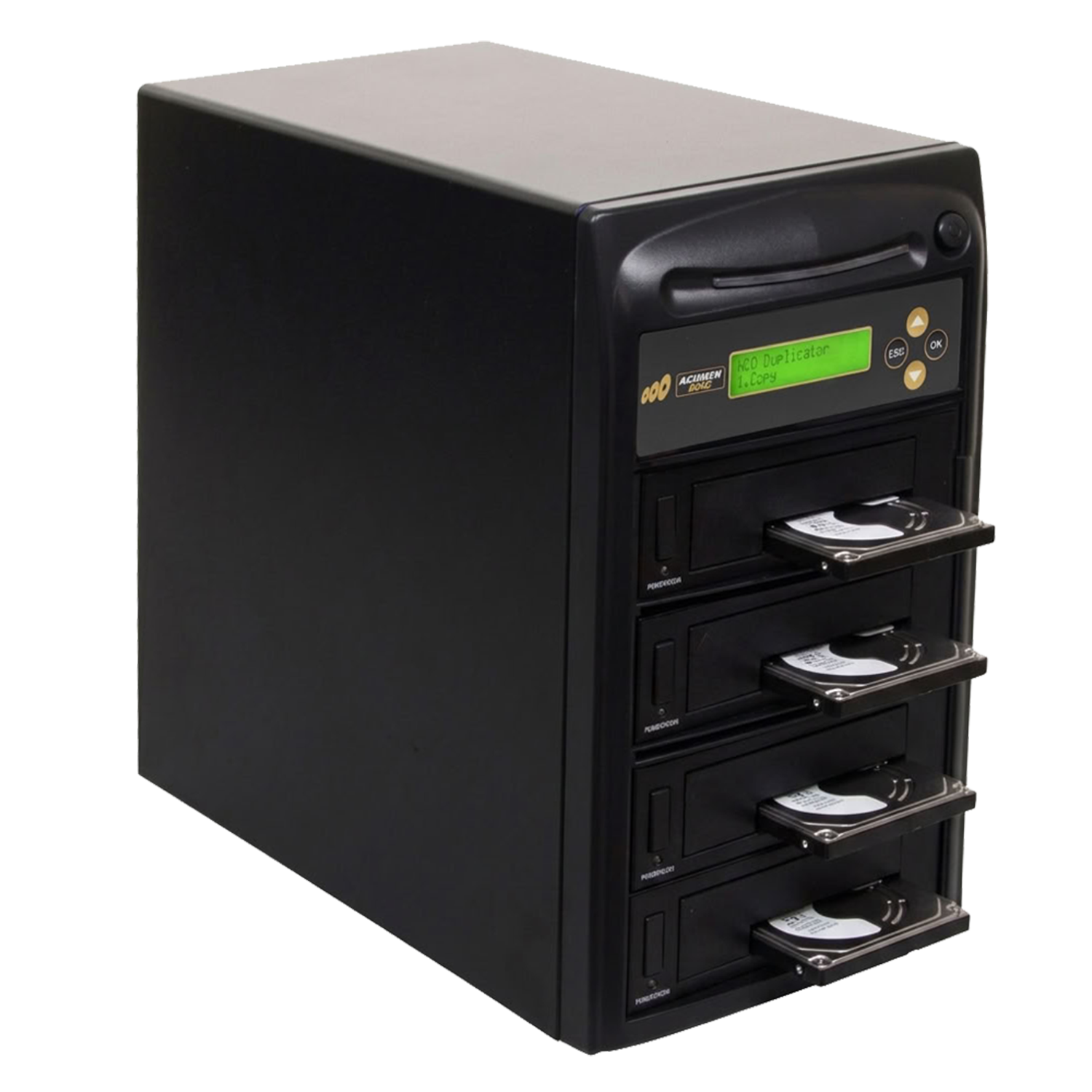

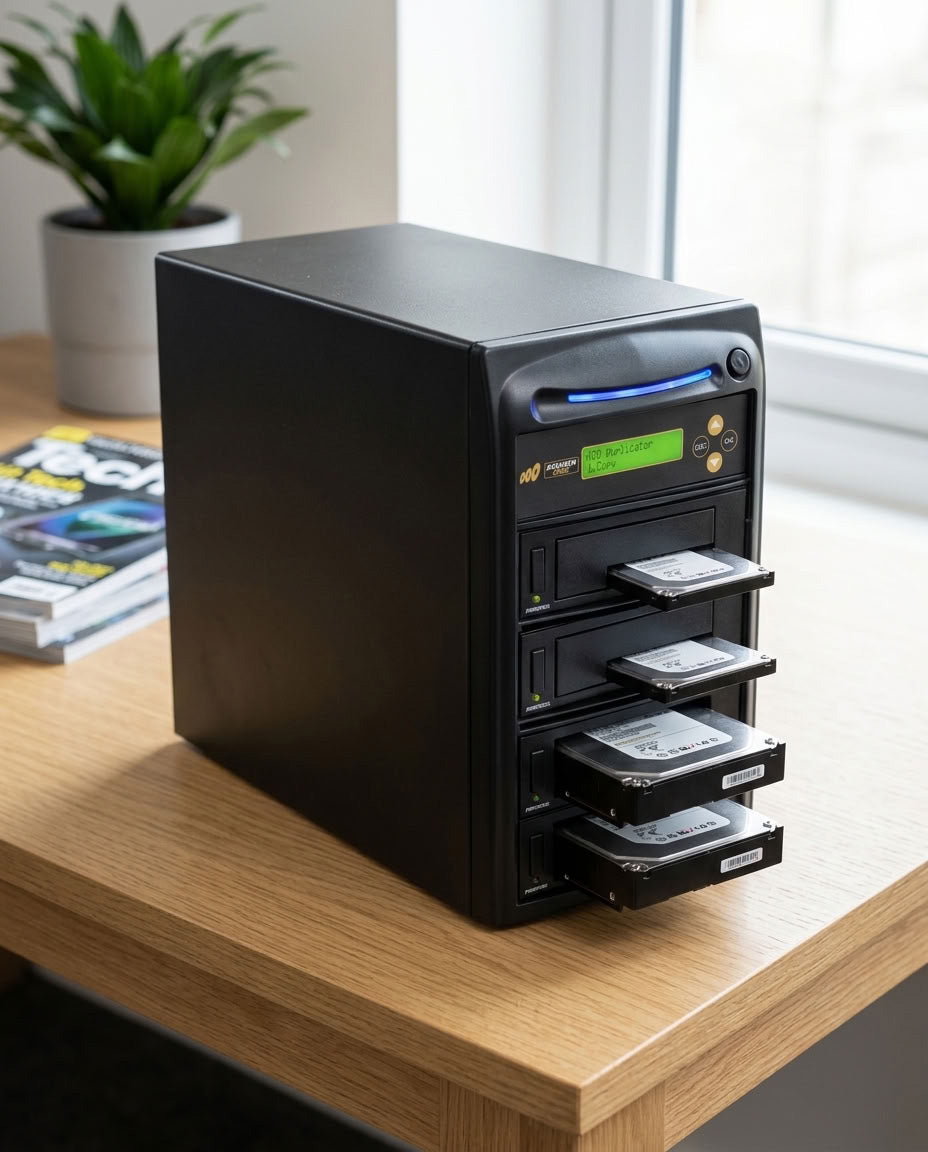

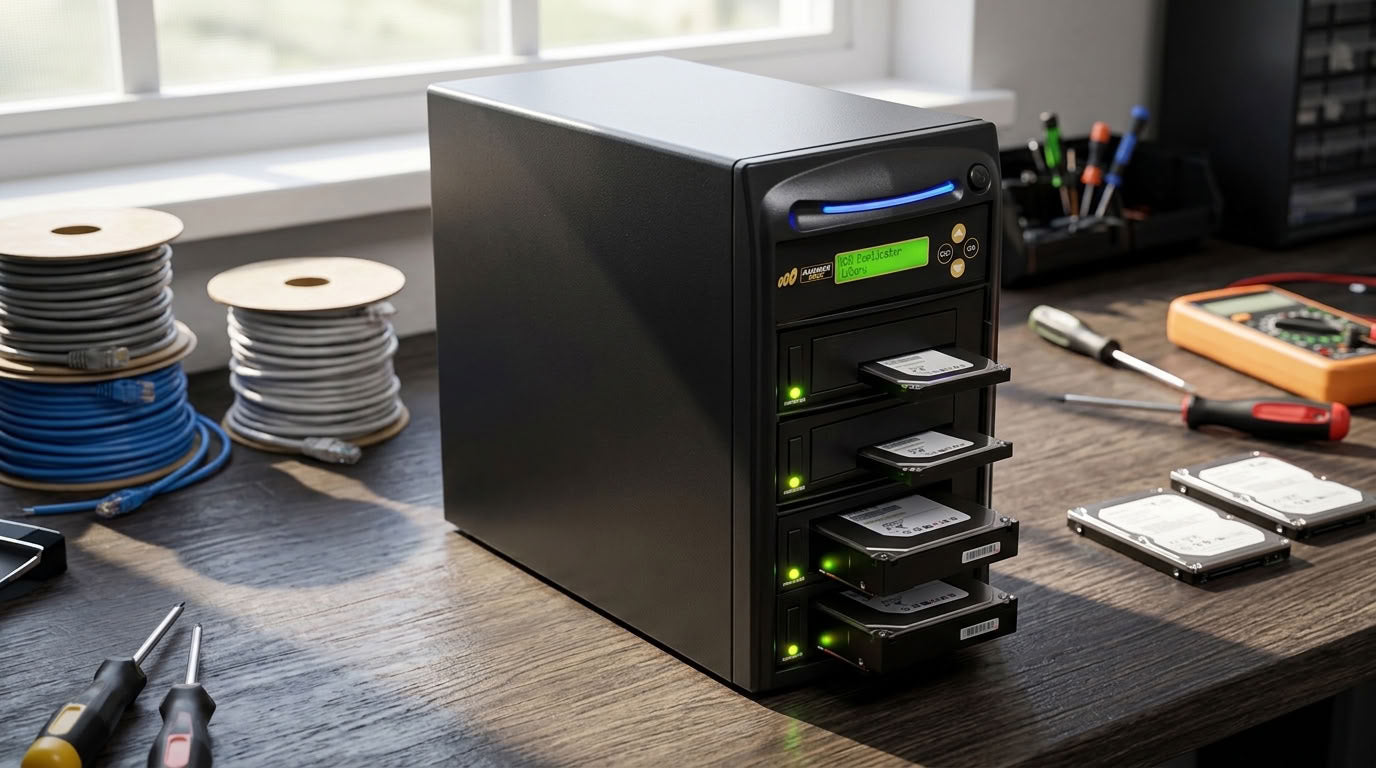

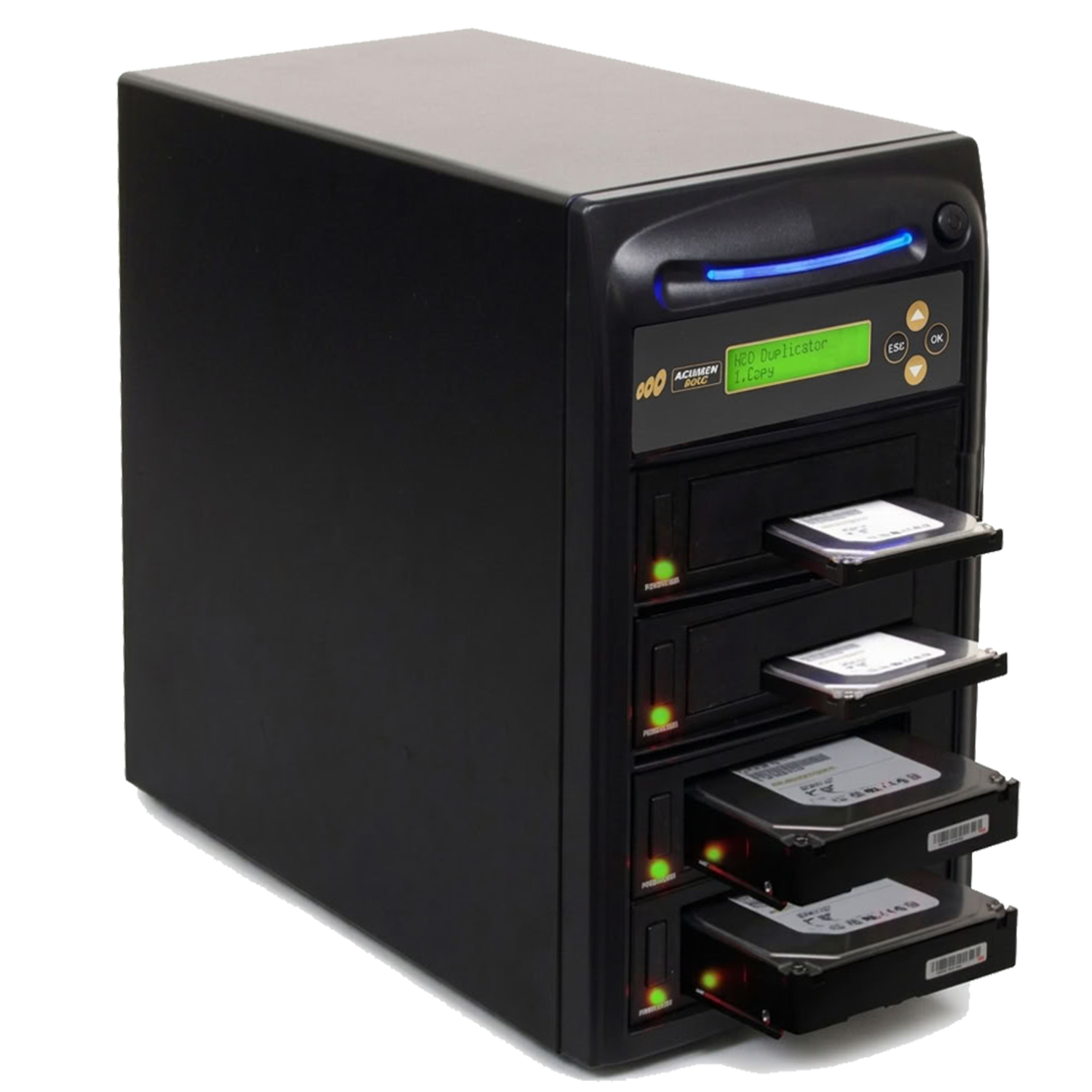

Acumen Disc™ Hard Drive duplication systems are hi-speed units with duplication speeds up to 150MBps in a single touch of a button. With easy to read LCD Display and user friendly unit that are DoD Compliant. This series will produce mirror images of 2.5" or 3.5" SATA HDD (Hard Drive) / SSD (Solid State) as it copies the data sector by sector from the source drive to the target drives simultaneously as it supports all brand, operating system or format of the drives. The copy modes include partition and boot sector information for a perfect clone. Acumen Disc™ 's High Performance HDD Duplicators have 3 different erasing data mode as this feature has been added to ensure that there are no trace of content left behind and for the consumers security and give users a peace of mind. Acumen Disc™ 's hard drive systems are superb problem solvers for business, education & government where duplicating existing hard drive data needs to be accomplished in minimal time. Please Note: This unit contains tray-less slot. Both 3.5" & 2.5" SATA Hard Drive Disks can be inserted into the slot without the need of an adapter. (Solid State Drives can be inserted into the 2.5" Slot as well) |
Key Features:
|
DOD Erase Function and Sanitizer Key Features:
|
Hardware Key Features:
|
Specifications:
Duplicator Mode
|
1. System and Files |
Operating Type
|
Stand Alone (No PC Required) |
Targets
|
3 Targets (from 1 to 3 Target HDD copies) |
Control Button
|
4 push buttons (▲ / ▼ / OK / ESC) |
Buffer
|
128MB |
Maximum Speed Supported
|
9 GB/min (150MB/sec) |
Language Support
|
English |
Duplicator Mode
|
Quick Copy (System and Files), Whole HDD |
Erase Options
|
Quick Erase, Full Erase, DoD Erase |
Supported HDD
|
Support all major brands of 2.5”, 3.5” SATA HDD & SSD |
Capacity
|
No Limitations |
Whole HDD Copy Supported Format
|
All Major Format |
Quick Copy supported Format
|
Support FAT16/32, exFAT, NTFS, Linux(Ext2/Ext3/Ext4) |
Power Consumption
|
300W—600W |
Input Voltage Required
|
115V~230V |
Storage Temperature
|
5°C ~ 45°C |
Operating Temperature
|
-20°C ~85°C |
Storage Humidity
|
20% ~ 80% |
Operating Humidity
|
5% ~ 95% |
Certification
|
FCC, CE, UL |
Source | Target | Supported |
3.5" SATA HDD | 3.5" SATA HDD | Yes |
3.5" SATA HDD | 2.5" SATA HDD / SSD | Yes |
2.5" SATA HDD / SSD | 2.5" SATA HDD / SSD | Yes |
2.5" SATA HDD / SSD | 3.5" SATA HDD | Yes |
