NVMe Cyclone Pro
NVMe Cyclone Pro Duplicators & Sanitizers
High-speed M.2 NVMe, SATA SSD and hard drive duplication systems for professional and enterprise applications.
The Acumen Disc NVMe Cyclone Pro is a professional-grade SSD and hard drive duplication system designed for organizations that need fast, reliable and flexible drive copying, testing and data sanitization.
Unlike a standard M.2 NVMe duplicator, the NVMe Cyclone Pro supports M.2 PCIe NVMe, M.2 SATA SSDs, and SATA-interface 2.5-inch and 3.5-inch storage devices, providing cross-interface duplication capabilities within one standalone system.
With available 4-target and 9-target configurations and speeds of up to 600MB/s (36GB/min), the system is designed for demanding storage deployment, drive preparation and duplication workflows.
High-Speed NVMe SSD Duplication
The NVMe Cyclone Pro delivers high-speed SSD copying while allowing multiple target drives to be processed simultaneously. Choose the configuration that matches your duplication requirements.
NVMe Cyclone Pro 300
Up to 18 GB per minute
NVMe Cyclone Pro 600
Up to 36 GB per minute
Performance note: Actual duplication speeds depend on the performance and configuration of the source and target drives.
M.2 NVMe, M.2 SATA & SATA Drive Support
The NVMe Cyclone Pro is designed for organizations working with multiple generations and formats of storage devices, rather than being limited to NVMe-to-NVMe duplication.
Cross-Interface Duplication
The Pro series supports copying between compatible M.2 and SATA storage devices, including M.2 NVMe to SATA, SATA to M.2 NVMe, M.2 SATA to SATA, and other supported interface combinations.
Standalone SSD Duplicator — No Computer Required
Perform duplication and drive-processing tasks directly from the NVMe Cyclone Pro without requiring a host computer or additional cloning software for its standalone duplication functions.
Copy & Compare
Perform standalone drive duplication and comparison operations using the system's built-in functions.
Erase & Sanitize
Access supported drive erasure and data sanitization functions directly through the system.
Test & Manage
Evaluate drive condition, perform supported testing operations and manage repetitive drive preparation tasks.
Multiple Copy Modes for Different Workflows
Choose from several duplication methods based on the type of data, drive layout and copying application.
System & Files Copy
Copies system data and stored files without duplicating unused drive space.
All Partition Copy
Available partition-based duplication mode for compatible copying workflows.
Whole Media Copy
Sector-by-sector duplication of the entire source drive.
Percentage Copy
Available percentage-based copying mode for applicable duplication tasks.
Non-Zero Copy
Additional supported copy mode for workflows where this copying method is appropriate.
SSD Testing & Drive Quality Checks
The NVMe Cyclone Pro includes drive-testing functions designed to help evaluate storage media before or after deployment.
Drive Testing Parameters
- Bad-sector detection
- Storage capacity
- Read speed
- Write speed
- Tested capacity
- Drive performance
- Other supported drive test parameters
Quality Check & Evaluation
Depending on the selected test, results can include the number of bad sectors detected, tested drive capacity and average read/write speeds.
These testing capabilities make the NVMe Cyclone Pro useful for SSD preparation, system deployment, storage-media inspection and professional quality-control workflows.
Drive Erasure & Data Sanitization
In addition to duplication, the NVMe Cyclone Pro provides erase functions for preparing drives for reuse and removing existing data.
Erase Functions
- Quick Erase
- Full Erase
- DoD 5220.22-M erase options
- Secure Erase
- Enhanced SSD Erase
Additional Drive Functions
- HPA Removal
- DCO Removal
Available erasure and drive-management functions depend on the selected model and supported drive interface.
Important: Confirm the supported erase method for the specific drive type and model before choosing a sanitization workflow. The availability of an erase function does not by itself establish compliance with a particular organization's data-destruction requirements.
Designed for Consistent Multi-Drive Processing
Additional features help organizations manage simultaneous duplication tasks and maintain records of drive-processing operations.
Independent Drive Channels
Each target slot operates with independent bandwidth. The system can identify slower or stalled drives, helping prevent a problematic drive from unnecessarily slowing the remaining duplication channels.
This is useful when copying to multiple SSDs with different performance characteristics.
Downloadable Event Logs
The NVMe Cyclone Pro can generate downloadable event log files containing information such as job status, date and time, and drive identification details.
Event logs provide a useful processing record for professional duplication and drive-management workflows.
Built for Professional Storage Workflows
From IT departments to manufacturing operations, the NVMe Cyclone Pro supports a wide range of professional duplication, testing and drive-preparation applications.
One Professional System. Multiple Storage Workflows.
The NVMe Cyclone Pro combines NVMe SSD duplication, SATA drive duplication, drive testing and data sanitization within a standalone professional storage-processing system.
With multiple target-drive configurations, high-speed duplication options and support for compatible M.2 and SATA storage devices, the Cyclone Pro is designed to support organizations that regularly process SSDs and hard drives.
NVMe Cyclone Pro Features at a Glance
A summary of the main capabilities available across the NVMe Cyclone Pro family. Specifications and supported functions vary by model and interface.
Explore the NVMe Cyclone Pro
Watch the product video to learn more about the NVMe Cyclone Pro duplication system.
Shop NVMe Cyclone Pro Duplicators
Choose the Acumen Disc NVMe Cyclone Pro model that matches your duplication speed, target-drive count and supported storage-interface requirements.
Whether you need a 1-to-4 M.2 NVMe duplicator, a 1-to-9 NVMe SSD duplicator, a high-speed 600MB/s system, or a solution combining NVMe and SATA duplication, the Cyclone Pro family offers professional options for storage-media processing.

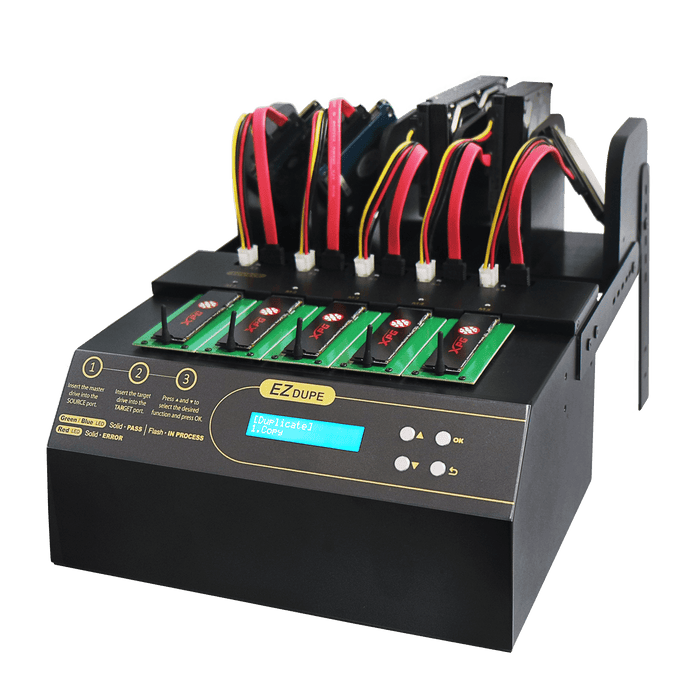

1 to 4 NVMe Cyclone PRO 300 - M.2 PCIe NVMe / M2 SATA SSD & SATA Hard Drive Duplicator & Sanitizer 18GB/Min (DM-HE3-5M04PP)
1 to 9 NVMe Cyclone PRO 300 - M.2 PCIe NVMe / M2 SATA SSD & SATA Hard Drive Duplicator & Sanitizer 18GB/Min (DM-HE3-5M09PP)
1 to 4 NVMe Cyclone PRO 600 - M.2 PCIe NVMe / M2 SATA SSD & SATA Hard Drive Duplicator & Sanitizer 36GB/Min (DM-HE6-5M04PP)

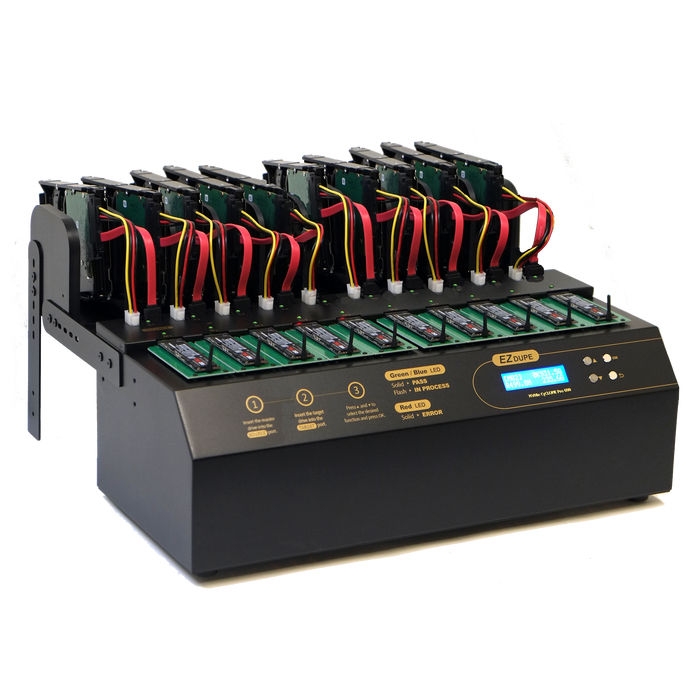

1 to 9 NVMe Cyclone PRO 600 - M.2 PCIe NVMe / M2 SATA SSD & SATA Hard Drive Duplicator & Sanitizer 36GB/Min (DM-HE6-5M09PP)
Try clearing a filter or using a broader search.
Need help specifying the right duplicator?
Share your media type, source/target count, speed requirements and any erase or verification needs. Acumen Disc can help narrow the catalog to the right configuration.
