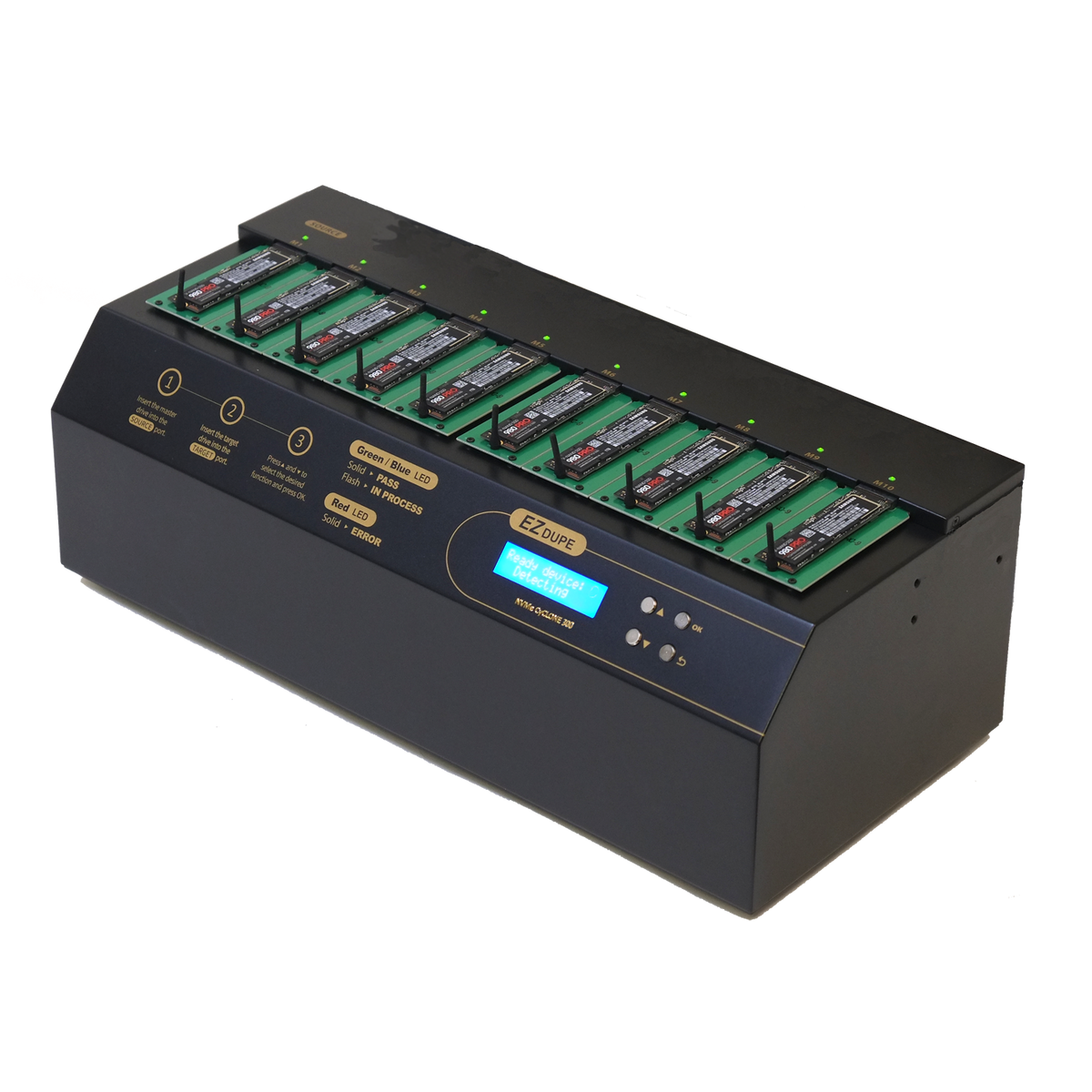

1 to 9 NVMe Cyclone 300 - M.2 PCIe NVMe / M2 SATA Internal SSD Duplicator & Sanitizer 18GB/Min
1 to 9 NVMe Cyclone 300 - M.2 PCIe NVMe / M2 SATA Internal SSD Duplicator & Sanitizer 18GB/Min
1 to 9 NVMe Cyclone 300 - M.2 PCIe NVMe / M2 SATA Internal SSD Duplicator & Sanitizer 18GB/Min
1 to 9 NVMe Cyclone 300 - M.2 PCIe NVMe / M2 SATA Internal SSD Duplicator & Sanitizer 18GB/Min
  • Load image into Gallery viewer, 1 to 9 NVMe Cyclone 300 - M.2 PCIe NVMe / M2 SATA Internal SSD Duplicator & Sanitizer 18GB/Min
  • Load image into Gallery viewer, 1 to 9 NVMe Cyclone 300 - M.2 PCIe NVMe / M2 SATA Internal SSD Duplicator & Sanitizer 18GB/Min
  • Load image into Gallery viewer, 1 to 9 NVMe Cyclone 300 - M.2 PCIe NVMe / M2 SATA Internal SSD Duplicator & Sanitizer 18GB/Min
  • Load image into Gallery viewer, 1 to 9 NVMe Cyclone 300 - M.2 PCIe NVMe / M2 SATA Internal SSD Duplicator & Sanitizer 18GB/Min

1 to 9 NVMe Cyclone 300 - M.2 PCIe NVMe / M2 SATA Internal SSD Duplicator & Sanitizer 18GB/Min

Regular price
Sale price
Regular price
Sold out
Unit price
Shipping calculated at checkout.


With flash media evolving worldwide, so has the need for duplication for such medias.  The latest being the next generation of smaller storage on computers and mobile devices. As such so has Acumen Disc in revolutionizing the M.2 NVMe market!

We proudly presents our newest entry to the high tech industry duplication services. The NVMe Cyclone series!

The NVMe Cyclone comes in two duplication copy sizes (up to 4 or 9) and two separate speed (300MB/sec and 600MB/sec). Each of the 4 variations will be in two series in standard (for PCIe NVMe & SATA NVMe) and Pro (PCIe NVMe, SATA NVMe, & SATA interfaced Hard Drive Disks). Total of 4 NVMe Cyclone and 4 NVMe Cyclone Pro duplicators will be in the market.

The Cyclone  duplicator is a specially designed architecture to support M.2 NVMe and M.2 SATA SSD. This PCIe M.2 SSD duplicator fits for enterprise applications and digital computing devices.

Copy information onto multiple drive formats simultaneously with the 1 to 9 M.2 PCIe NVMe / SATA SSD Duplicator and Sanitizer from EZ Dupe. Designed to deploy files across multiple M.2-based drives efficiently, this duplicator gives you the ability to copy up to Four M.2 NVMe solid-state drives simultaneously with a single press of a button.

This duplicator is ideal for enterprise-level tech professionals who need to image several computers, backup files, and fully erase drives with ease.

ez dupe m.2 nvme duplicator cyclone 300 m-key b-key b+m key

Easy to Use

This duplicator can be used with a computer or standalone, allowing you to use disk-to-disk duplication or copy without the need for additional software.

Easily copy, erase, and format multiple M.2 NVMe drives simultaneously with the press of a button. If needed, quick, full and custom erase functionality is also available, enabling you to efficiently factory reset your drives.

Optimal Compatibility

Create copies quickly with data transfer rates up to 18GB per minute or 300MB per second, giving you quick and efficient duplication across M.2 drives. This duplicator supports different interfaces including M.2 NVMe, B Keys, M Keys, and B + M Key drives.  It will accept 22mm wide keys (M, B, and B+M).

While these formats are supported, copying is only possible between devices that share the same format. Additionally, lower speed solid-state and hard-disk drives can be filtered out with setup for higher copying efficiency.

Independent Channel on each slot

ez dupe hdd duplicator m.2 nvme cyclone

Each slot has its own independent bandwidth with the max copy speed set at the slowest speed of the M.2 NVMe. When a bad M.2 NVMe stalled during the duplication copy process, the duplicator will automatically reject the stalled M.2 NVMe and the max copy speed will increase for the remaining copy slots.

Event Log File

Log File EZ Dupe duplicator HDD NVMe M.2


Download your Event Log File to one of the drive to confirm the status of each job function employ by the NVMe Cyclone. Event Log file's information includes: status of the job function, date/time stamp, and the drive's identification numbers.

Efficiently Designed

The user-friendly design creates easy access for host and target drives, producing an ergonomic feel and making tasks easier to complete. The durable construction is built for long-lasting daily operation, keeping your production moving along efficiently.


Key Features:

    • High speed duplication speed - up to 300MBp/s - depends on the speed of M.2 NVMe modules
    • Three New Copy Functions: All Partitioned Copy, Non-Zero copy (for proprietary system to exclude "zero area" data for copies) & Percentage Copy (set the end point to copy from 0% starting point)
    • Intelligent Copy mode to copy System and Files only, There is no need to copy the entire M.2 NVMe and allow you to do more in less time!
    • Duplicates 22mm sized M.2 NVMe keys (B-Key, M-Key, B+M Keys)
    • Clone Sector by Sector from Source M.2 NVMe to the copied M.2 NVMe
    • DoD 5220.22-M compliant erase function permanently deletes sensitive data
    • Downloadable Event Log File for job completed function, time/date stamp, drives' ID# information can be download to the first destination slot
    • Lower speed M.2 NVMe can be filtered out with setup for higher copy efficiency
    • Copy, Compare, PreScan, DoD Compliant Erase functions
    • Standalone system - No computer, host or software needed
    • LCD Display for easy to read and understand
    • OS system files supported: Windows, Linux, and Mac
    • Self Diagnostics automatically run on power-up
    • Downloadable firmware updates (if available)
    • One Year Limited Warranty


    5 Copy Modes and Duplication Key Features:

    Copy Modes:

    Whole media copy - Comprehensive (Full Copy)

    Whole Media copy will copy the entire M.2 NVMe drives regardless of whether it has been partitioned or not. Longer Duplication Time is expected for full copy.

    System and Files Copy – Intelligent Copy (Quick Copy)

    System and Files Copy copies only stored system and files data, not unused space area. Intelligent Copies that duplicates essential files in the M.2 NVMe drives to save time.

    Example: Partition 1 has a capacity of 158GB with 58GB of data in it. Only 58GB of data will be copied while unused space area will not be copied.


    All Partitioned Copy - Copy Partitioned Area Only

    Example: a 600GB M.2 NVMe has two partitions.

    Partition 1 with 158GB and Partition 2 with 200GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied


    Percentage Copy - Setting up a end point from 0% starting point

    When the file system of a M.2 NVMe drive is undefined, Percentage Copy can be used by setting up the ending point of data to copy from the starting point of 0%

    Non-Zero Copy - Excludes "zero"data area for proprietary systems

    For unknown or proprietary systems, Non-Zero Copy mode can be utilize to exclude "zero" data area for rapid and efficient copy for M.2 modules that contain proprietary system files such as SGI, BOS, and many other different operating systems.


    DOD Erase Function and Sanitizer Key Features:

    • DoD 5220.22-M Data Sanitation Compliant
    • Permanently wipes sensitive data to counter data reminiscence
    • Secure Erase: Deletes and replace the entire hard drive data with zero strings

    Quick Erase - Essential Files

    Erase the index of a M.2 NVMe drive within a few seconds.

    Full erase - Entire Drive

    Erase the data from a M.2 NVMe module by overwriting each sector which is able to read/write data.

    3-Pass DoD

    Erase M.2 NVMe module 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.

    7-Pass DoD

    Erase M.2 NVMe module 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.

    Secure Erase

    The Secure Erase Mode is approved by N.I.S.T. (National Institute of Standard Technology) SP 800-88 for data sanitization solution that most lessens the risk to confidentiality while respecting any other constraints involved.

    Enhanced erase NIST EZ Dupe HD PAL Pro

    Enhanced SSD Erase

    The Enhance SSD Erase Mode is approved by N.IS.T. for overwriting predetermined data patterns, data area including sectors that are no longer in use due to allocation. It erases data by using internal M.2 SSD's built-in ATA command.

    HPA Erase for HD Cyclone 300 EZ Dupe Hard Drive Duplicator

    Erase HPA area

    Remove the HPA (Hidden Partition Area) and free up space


    Hardware Key Features:

    • Durable Case for Longtime Usage
    • Cooling Fan for air circulations
    • High Performance Power Supply
    • Rubber Stopper to prevent over-insertion
    • Flatbed platform for flat surface operation



    Copy Modes
    1. System and Files
    2. All Partition
    3. Whole HDD
    4. Percentage Mode
    5. Non-Zero
    Operating Type
    Stand Alone (No PC Required)
    Number of Copies
    9 Target  (up to 9 M.2 NVMe copy)
    Control Button
    4 push buttons (▲ / ▼ / OK / ESC)
    Maximum Speed Supported
    18 GB/min (300MB/sec)
    Language Support
    Erase Options
    • Quick Erase (Data only)
    • Full Erase
    • 3 Pass DoD 5220.22-M Erase
    • 7 Pass DoD
       5200.22-M Erase
    • Secure Erase
    • Enhanced SSD Erase
    • HPA Erase
    Format Options
    • FAT32 - For M.2 over 2GB but less than 32GB
    • exFAT - For M.2 over 32GB
    Supported M.2 NVMe

    Key Types:

    • B-Key (SATA)
    • M-Key (PCIe x2/x4)
    • B+M Key (SATA or PCIe)*
    * Depending each on the internal connection

    Sizes: 22mm wide keys

    • 2230
    • 2242
    • 2260
    • 2280
    No Limitations
    Whole Media Copy Supported Format
    All Major Format
    Quick Copy supported Format
    Window: exFAT, FAT16/32, NTFS
    Linux: EXT2 / EXT3 / EXT4
    Mac OS: HFS, HFS+, HFSX

    Other unknown/proprietary formats can be copied using the "Whole media" function
    Power Consumption
    Input Voltage Required
    Storage Temperature
    5°C ~ 45°C
    Operating Temperature
    -20°C ~85°C
    Storage Humidity
    20% ~ 80%
    Operating Humidity
    5% ~ 95%
    FCC, CE, UL


    Copying Option
    Source Target Supported
    M.2 NVMe
    M.2 SATA
    M.2 SATA
    M.2 NVMe
