Description:

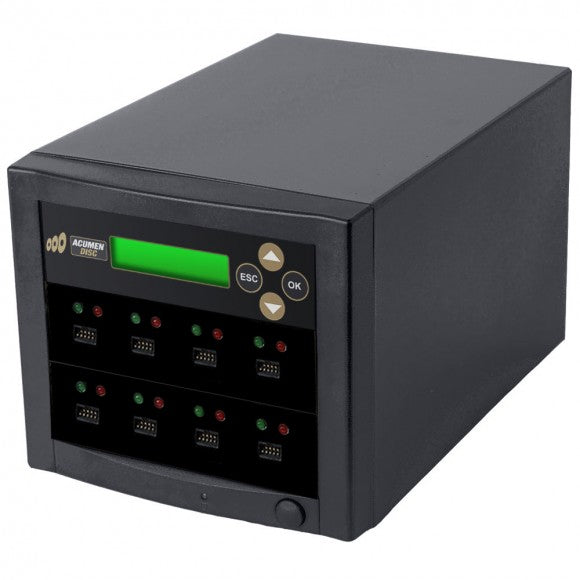

The Acumen Disc™ Embedded USB Flash memory Storage Drives Duplicator is a high speed, stand-alone, hardware based eUSB Flash Memory Device Duplicator capable of copying the contents from any eUSB Flash Memory Module Drives to up to 7 other eUSB Flash Memory Storage Drives without the need of a computer.
Vertical mounted Embedded USB are recommended. Horizontal mounts be be use for certain size that does obstruct the slot.
Our eUSB duplicator can easily and reliably create multiple copies of your eUSB cards without a computer or cumbersome software. Each eUSB channel has dedicated copy throughput of 35MB per second.
Our eUSB duplicators features Asynchronous copy. This neat feature allows each channel to function independently and copies directly from 128MB of built-in memory so there is no need to start and end a copy cycle at the same time.
Source Analysis feature identifies the content on the master and intelligently copies only the data to speed up copy cycle. Fast, reliable, convenient and cost-effective to operate, Acumen Disc™ eUSB duplicators help you to get more done in less time!
Speedy - Copying Speed up to 35MB/s
The copy speed of this Tower Duplicator is up to 35MB/s or 2.1GB/min.
The copy speed will remain the same even if the number of load is increased. In today’s competitive business environment, higher efficiency allows you to stand out from the others.
Key Features:
High speed copy up to35MB/sec
Support most file formats, file size, and card/drive capacity.
Standalone turnkey system; no computer required.
User friendly interface and simple operation
Real-time display of detailed information on bright LCD screen.
Support Synchronous and Asynchronous copy modes
Real time copy and compare technology to ensure successful and complete copies.
No warm-up and cool-down
Specifications:
Operating Type
Stand-alone (No PC Required)
Number of Targets
Up to 7 eUSB Copies
Supported Media
Embedded USB (eUSB) Flash Memory Drives
Supported eUSB types
eUSB SSD Drive - Vertical eUSB recommended
Transfer Speed
Up to 35 MB / sec (max. speed depends on USB)
Buffer Memory
128 MB
Copy Mode
Synchronous or Asynchronous
Format Supported
Quick Copy: FAT16/32, NTFS, Linux(EXT2/EXT3/EXT4)
Whole Media Copy: All Formats
LCD Display
2 x 16 Backlit
Power Requirements
115V or 230V
Operating Temperature
41°F ~ 122°F
Operating Humidity
15% ~ 90%
Regulations
FCC, CE
*Specifications are subject to change without notice.
Intelligent Copy Only Copy Valid Data Area
Analyze valid data area promptly by unique source analysis technology, only copy system and data file. Supported file systems under three major operating systems: Windows, Linux and macOS.
No need to copy the whole media and allowing you to do more in less time!
Asynchronous Copy Increase Working Efficiency Significantly
Copy process starts immediately when a new target is inserted, does not have to wait for all target devices get ready. It saves a lot of time during inserting the target device, the more targets the more time is saved.
Exclusive technology enables asynchronous operation without the restrictions of memory size.
Three Data Erase Modes Keep from the Leakage of Confidential Data
When manufacturers/maintenance and repair shops need to reuse hard drives, this is an ideal function to erase data based on different level of secrecy.
Quick Erase:Erase the index of a hard drive within a few seconds.
Full Erase:Erase the data from a hard drive by overwriting each sector which is able to read/write data.
DoD Erase (3pass DoD):Erase HDD 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.
The Best Guard for CF Card Inspection-Quality Check
H3 Read Test
H5 Write/Read Test H6 Cyclic Unused Area Write/Read Test H7 Fake Card Test
6 Testing Criteria Test range/ Bad sector ratio/ Read speed threshold/ Write speed threshold/ Capacity threshold/ Format type
4 Testing Results Bad sector quantity / Tested capacity / Average read speed / Average write speed
Key Features
High speed copy up to 35MB/sec
Support most file formats, file size, and card/drive capacity.
Standalone turnkey system; no computer required.
User friendly interface and simple operation
Real-time display of detailed information on bright LCD screen.
Support Synchronous and Asynchronous copy modes
Real time copy and compare technology to ensure successful and complete copies.
No warm-up and cool-down
Specifications
Operating Type
Stand-alone (No PC Required)
Supported Media
Embedded USB (eUSB) Flash Memory Drives
Data Transfer Speed
Up to 35 MB / sec (max. speed depends on USB)
Model Number
eUSB7
Number of Targets
Up to 7 eUSB Copies
Buffer Memory
128 MB
Copy Mode
Synchronous or Asynchronous
Format Supported
Quick Copy: FAT16/32, NTFS, Linux(EXT2/EXT3/EXT4)
Whole Media Copy: All Formats
LCD Display
2 x 16 Backlit
Power Requirements
115V or 230V
Operating Temperature
41°F ~ 122°F
Operating Humidity
15% ~ 90%
Regulations
FCC, CE
Supported eUSB types
eUSB SSD Drive - Vertical eUSB recommended
