Description:
|

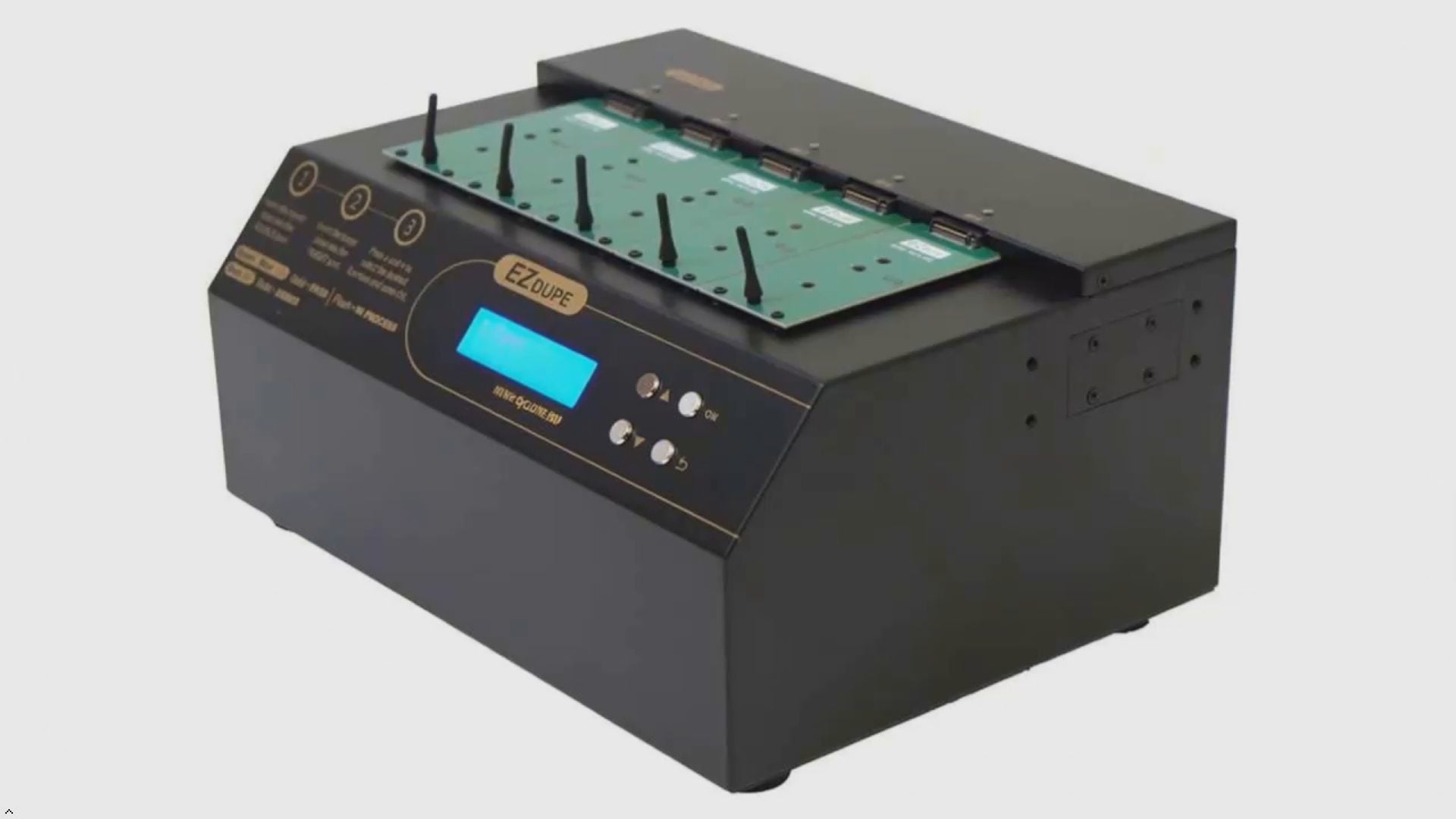

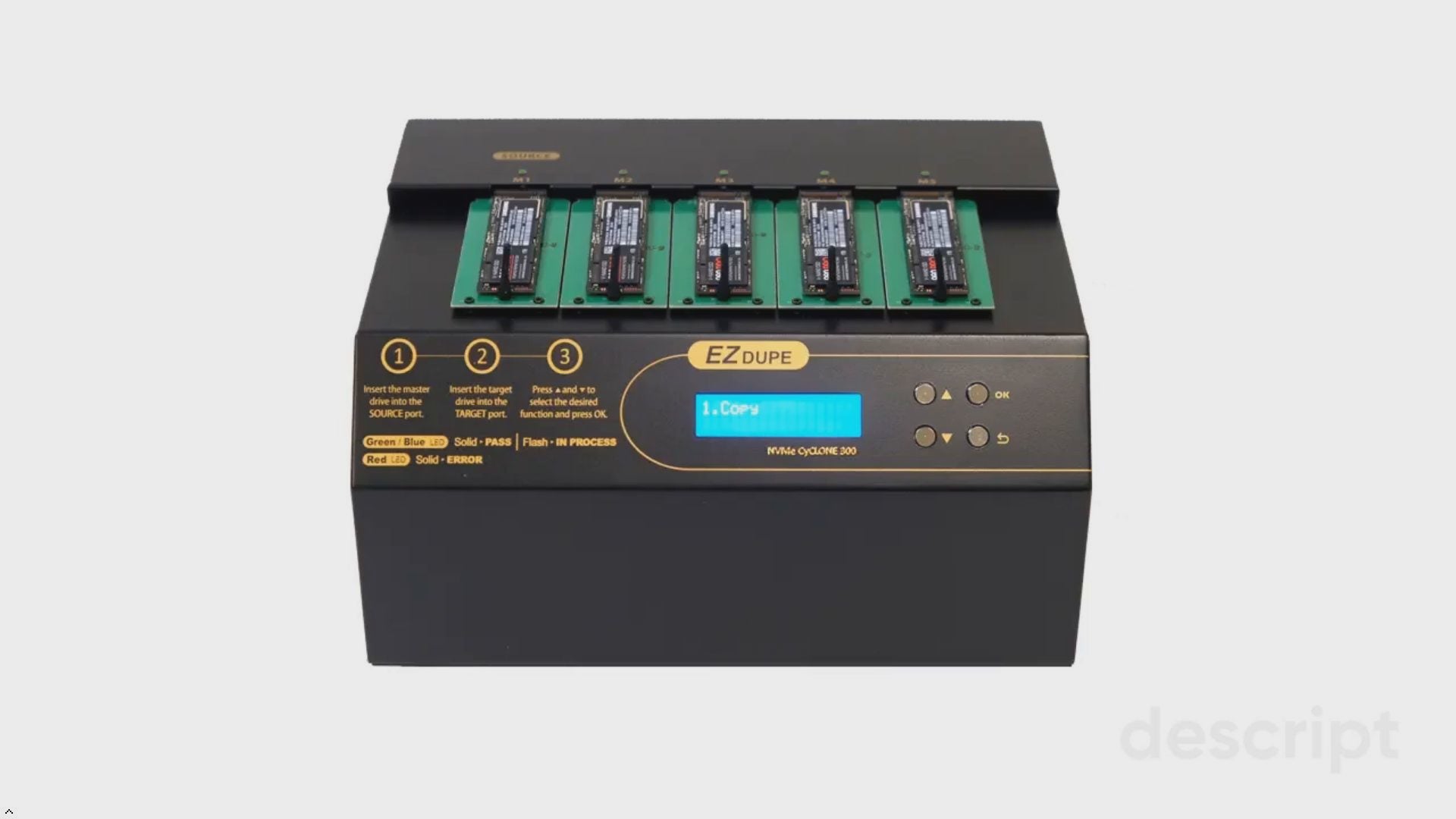

With flash media evolving worldwide, so has the need for duplication for such medias. The latest being the next generation of smaller storage on computers and mobile devices. As such so has EZ Dupe in revolutionizing the M.2 NVMe market! EZ Dupe proudly presents our newest entry to the high tech industry duplication services. The NVMe Cyclone series! The NVMe Cyclone comes in two duplication copy sizes (up to 4 or 9) and two separate speed (300MB/sec and 600MB/sec). Each of the 4 variations will be in two series in standard (for PCIe NVMe & SATA NVMe) and Pro (PCIe NVMe, SATA NVMe, & SATA interfaced Hard Drive Disks). Total of 4 NVMe Cyclone and 4 NVMe Cyclone Pro duplicators will be in the market. EZ Dupe Cyclone duplicator is a specially designed architecture to support M.2 NVMe and M.2 SATA SSD. This PCIe M.2 SSD duplicator fits for enterprise applications and digital computing devices.  Copy information onto multiple drive formats simultaneously with the 1 to 4 M.2 PCIe NVMe / SATA SSD Duplicator and Sanitizer from EZ Dupe. Designed to deploy files across multiple M.2-based drives efficiently, this duplicator gives you the ability to copy up to Four M.2 NVMe solid-state drives simultaneously with a single press of a button. This duplicator is ideal for enterprise-level tech professionals who need to image several computers, backup files, and fully erase drives with ease.
Easy to UseThis duplicator can be used with a computer or standalone, allowing you to use disk-to-disk duplication or copy without the need for additional software. Easily copy, erase, and format multiple M.2 NVMe drives simultaneously with the press of a button. If needed, quick, full and custom erase functionality is also available, enabling you to efficiently factory reset your drives. Optimal CompatibilityCreate copies quickly with data transfer rates up to 18GB per minute or 300MB per second, giving you quick and efficient duplication across M.2 drives. This duplicator supports different interfaces including M.2 NVMe, B Keys, M Keys, and B + M Key drives. It will accept 22mm wide keys (M, B, and B+M).
While these formats are supported, copying is only possible between devices that share the same format. Additionally, lower speed solid-state and hard-disk drives can be filtered out with setup for higher copying efficiency. Independent Channel on each slot
|
Key Features:
|
5 Copy Modes and Duplication Key Features:
|
Copy Modes:
Whole media copy - Comprehensive (Full Copy) Whole Media copy will copy the entire M.2 NVMe drives regardless of whether it has been partitioned or not. Longer Duplication Time is expected for full copy.
System and Files Copy – Intelligent Copy (Quick Copy) System and Files Copy copies only stored system and files data, not unused space area. Intelligent Copies that duplicates essential files in the M.2 NVMe drives to save time.
All Partitioned Copy - Copy Partitioned Area Only Example: a 600GB M.2 NVMe has two partitions. Partition 1 with 158GB and Partition 2 with 200GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied
Percentage Copy - Setting up a end point from 0% starting point When the file system of a M.2 NVMe drive is undefined, Percentage Copy can be used by setting up the ending point of data to copy from the starting point of 0%
Non-Zero Copy - Excludes "zero"data area for proprietary systems For unknown or proprietary systems, Non-Zero Copy mode can be utilize to exclude "zero" data area for rapid and efficient copy for M.2 modules that contain proprietary system files such as SGI, BOS, and many other different operating systems.
|
DOD Erase Function and Sanitizer Key Features:
 Quick Erase - Essential FilesErase the index of a M.2 NVMe drive within a few seconds.
Full erase - Entire DriveErase the data from a M.2 NVMe module by overwriting each sector which is able to read/write data.
3-Pass DoDErase M.2 NVMe module 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.
7-Pass DoDErase M.2 NVMe module 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.
Secure Erase The Secure Erase Mode is approved by N.I.S.T. (National Institute of Standard Technology) SP 800-88 for data sanitization solution that most lessens the risk to confidentiality while respecting any other constraints involved.
Enhanced SSD Erase The Enhance SSD Erase Mode is approved by N.IS.T. for overwriting predetermined data patterns, data area including sectors that are no longer in use due to allocation. It erases data by using internal M.2 SSD's built-in ATA command.
Erase HPA area Remove the HPA (Hidden Partition Area) and free up space |
Hardware Key Features:
|
Specifications:
|
Copy Modes
|
1. System and Files 2. All Partition 3. Whole HDD 4. Percentage Mode 5. Non-Zero |
|
Operating Type
|
Stand Alone (No PC Required) |
|
Number of Copies
|
4 Target (up to 4 M.2 NVMe copy) |
|
Control Button
|
4 push buttons (▲ / ▼ / OK / ESC) |
|
Buffer
|
256MB |
|
Maximum Speed Supported
|
18 GB/min (300MB/sec) |
|
Language Support
|
English |
|
Erase Options
|
|
|
Format Options
|
|
|
Supported M.2 NVMe
|
Key Types:
* Depending each on the internal connectionSizes: 22mm wide keys
|
|
Capacity
|
No Limitations |
|
Whole Media Copy Supported Format
|
All Major Format |
|
Quick Copy supported Format
|
Window: exFAT, FAT16/32, NTFS
Linux: EXT2 / EXT3 / EXT4
Mac OS: HFS, HFS+, HFSX
Other unknown/proprietary formats can be copied using the "Whole media" function |
|
Power Consumption
|
300W—600W |
|
Input Voltage Required
|
115V~230V |
|
Storage Temperature
|
5°C ~ 45°C |
|
Operating Temperature
|
-20°C ~85°C |
|
Storage Humidity
|
20% ~ 80% |
|
Operating Humidity
|
5% ~ 95% |
|
Certification
|
FCC, CE, UL |
| Source | Target | Supported |
| M.2 NVMe |
M.2 SATA |
Yes |
| M.2 SATA |
M.2 NVMe |
Yes |
